SSC1 LED Fog Light Kit for 2023+ Chevrolet Colorado


Regular price$404.95

  • In stock, ready to ship
  • Inventory on the way

Sourced product shipping policy

Free ground shipping within Western Canada on orders over $350 on all 3rd party products available through RA Motorsports! $10 Flat applies under $350 order total.

Most products ship direct from manufacturer, inquire for lead times.

*Some exclusions apply for oversize/weight products and shipping to remote locations.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.


  • Bolt-on replacement for your 2023+ Colorado factory fog lamps.
  • Allows you to add LED fog lamps to models not equipped with OEM fog lights.
  • SAE-compliant road-legal output.
  • Backlight feature provides amber accent light.
  • Plug-and-play wiring, with included harness.
  • Advanced TIR optics, with Osram Boost HX 20W LED chip.
  • Engineered and Assembled in USA.


Overview. Customize your truck and significantly increase light output with the SSC1 LED Fog Light Kit for the 2023+ Chevrolet Colorado! This kit includes two SSC1 LED fog light pods, allowing you to replace your factory fog lights, or add LED fog lights if your truck did not come with fog lights from the factory. Featuring custom-engineered TIR optics combined with the newest LED chip technology, these pods deliver road-legal light output in your choice of white or yellow, with a factory-style appearance.

Add or Upgrade. If your truck is equipped with fog lights from the factory, you can easily swap out your factory fog lights thanks to the custom-molded brackets included in this kit. Simply remove your factory fog light assembly and ours will bolt right in its place! Two H11-size DT adapter wires are included with the kit, allowing you to connect the lights to your factory bulb sockets - no additional wiring needed!

If your truck did not come with fog lights from the factory, don't worry! This kit will still bolt on using factory mounting points. The included Add-On Fog Harness also allows the fog lights to operate automatically, just like you'd expect from the factory. NOTE: If your truck is not equipped with OE fog lights, factory fog light bezels are required to complete the installation. Check out the fitment section below for more information!

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SSC1 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SSC1 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 98-degree spread. When installed as a pair and aimed in accordance with your state's regulations, it meets the SAE J583 standard as a Foglamp for legal on-road use, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather. Please check your local laws and regulations for aiming, installation, and applicability.

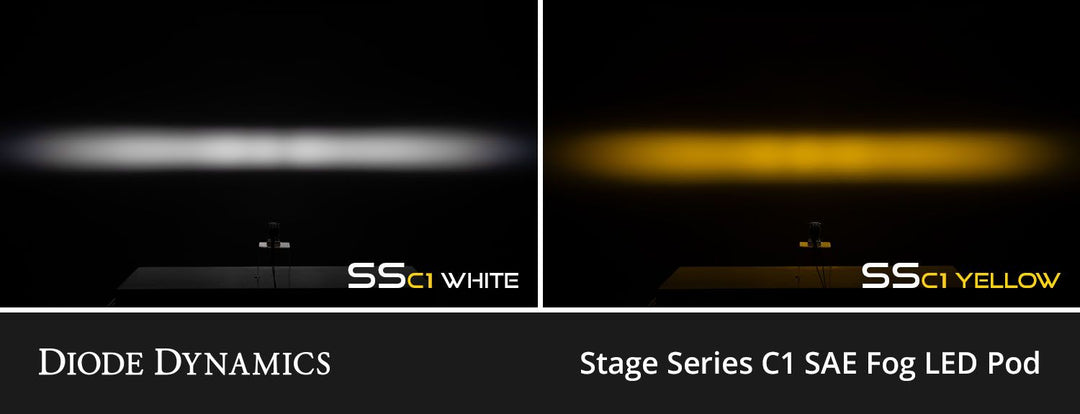

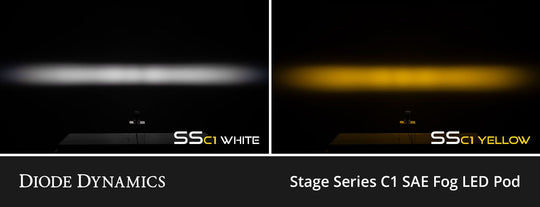

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

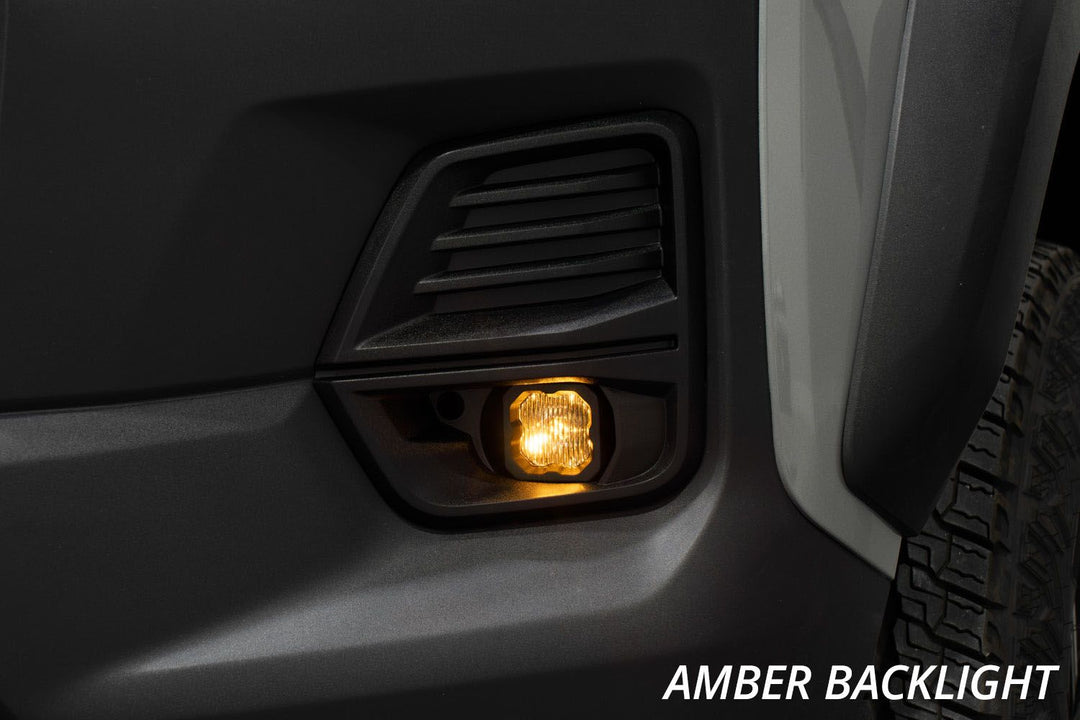

Backlight Functionality. The Stage Series C1 LED Pod includes a distinctive backlight feature, in a brilliant amber color. The SSC1's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find in other single-LED pods on the market. This allows you to double the functionality of your setup, by adding an accent light as well as a main beam!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
  • Two (2) SSC1 standard LED pods
  • Two (2) H11 DT 4-Pin backlight tap wires
  • One (1) DT 4P Add-on Foglight Wiring Harness

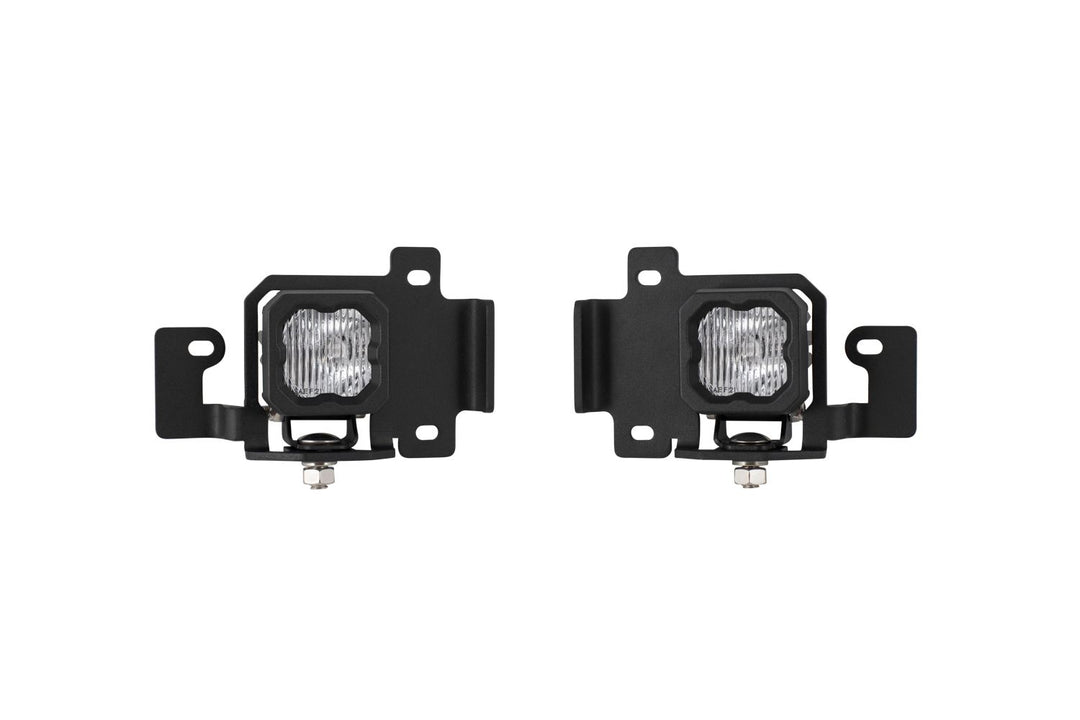

  • Two (2) brackets
  • Mounting hardware
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee


NOTE: This kit is not compatible with ZR2 trim levels. If your truck is not equipped with factory fog lights, GM fog light bezels must be purchased to complete the installation. These can be found online, or by contacting your local Chevrolet dealership.

LH bezel part number: 84770637

RH bezel part number: 84770638

Application: Fog Light
Make: Chevrolet
Model: Colorado
Years: 2023, 2024
